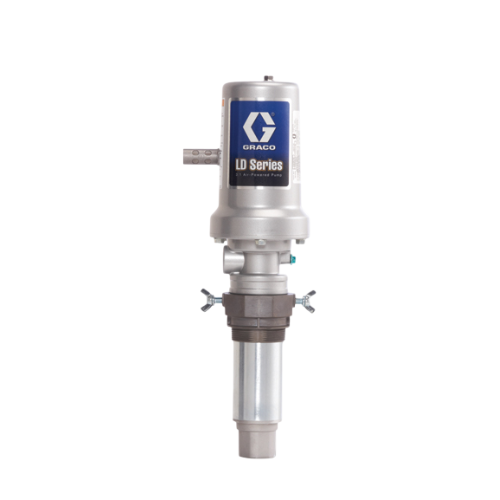

Rhino Tuff 5:1 Pump LD Series W/BUNG Adapter (MPN: RTT-4019)

Description

The GRACO 5:1 LD Series Pump with Bung Adapter (MPN: 24G588) is designed for professional-grade fluid transfer of non-corrosive and non-abrasive lubricants in stationary and mobile lube system installations. Ideal for high-pressure applications, this air-operated pump handles motor oil, gear oil, grease, ATF, and hydraulic fluids with precision and durability.

Delivering a 5:1 fluid pressure ratio and a free flow rate of 6.7 gallons per minute, this pump supports fluid delivery at pressures up to 750 psi, making it a powerful choice for automotive and industrial service centers. The included bung adapter allows for direct drum mounting, while the rugged construction and quiet performance ensure long-term use in demanding shop environments.

Built with zinc-plated carbon steel, aluminum, polyurethane, and nitrile wetted components, the pump is optimized for smooth operation and longevity. Use with compressed air only. For professional use only. Not suitable for windshield washer fluid.

Key Features

• High-Pressure Lubricant Pump: Designed for grease, oil, ATF, and hydraulic fluids in professional service environments.
• 5:1 Fluid Pressure Ratio: Achieves fluid output up to 750 psi using compressed air.
• Direct Drum Mounting: Bung adapter included for secure and efficient installation.
• Free Flow Rate of 6.7 GPM: Ideal for high-demand operations in automotive and industrial settings.
• 10-Foot Suction Lift: Capable of drawing fluids from deep drums or tanks.
• Durable Wetted Parts: Built with zinc-plated carbon steel, aluminum, polyurethane, and nitrile for extended service life.
• Quiet Operation: Sound level of 82.0 dB(A); optional muffler (GRACO #112933) available for noise reduction.
• Air-Operated Only: For professional use with compressed air systems; not for use with windshield washer fluid.


Additional Information

• Maximum Working Pressure: 750 psi
• Fluid Pressure Ratio: 5:1
• Air Operation Range: 25 – 150 psi (1.37 – 10.3 bar)
• Recommended Air Pressure: Less than 125 psi (for optimum pump life)
• Maximum Pump Speed: 180 cycles/min
• Recommended Speed: 75 cycles/min or lower (2 gal/min)
• Cycles per Gallon: 37 cycles/gal (10 cycles/liter)
• Suction Lift: 10 feet of oil
• Free Flow Rate: 6.7 gallons per minute
• Sound Power Level: 82.0 dB(A) at 100 psi and 20 cycles/min
• Air Inlet: 1/4"-18 NPT
• Fluid Inlet: 1"-11.5 NPT
• Fluid Outlet: 1/2"-14 NPT
• Wetted Materials: Zinc-plated carbon steel, aluminum, polyurethane, nitrile, nickel-plated aluminum
• Typical Applications: Automotive dealerships, mobile lube trucks, quick lubes, tire and transmission centers
• Fluid Compatibility: Motor oil, gear oil, grease, ATF, hydraulic fluid
• Manufacturer Part Number: 24G588
• Performance Curve: Refer to GRACO Instruction Manual 3A1334


Shipping & Warranty

This item ships FOB from Idaho (Zip Code: 83605). Depending on order volume and delivery location, it may ship via standard ground or LTL freight. For bulk orders or installation consultation, reach out to our support team.

Backed by a 1-Year Manufacturer’s Warranty from GRACO, covering material and workmanship defects under normal operating conditions.
