120/80 Gallon Rhino Tuff Tanks Complete Gravity Feed System (MPN: RTT-6280)

Description

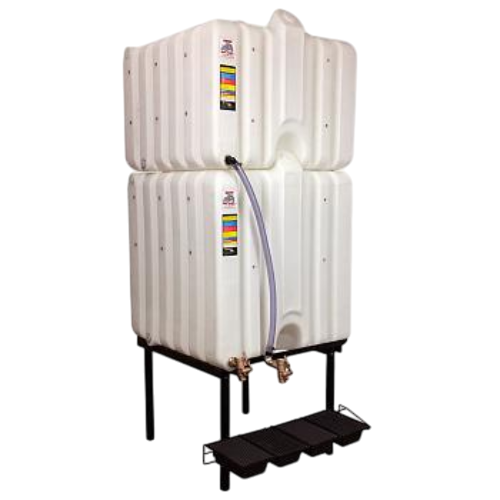

The Rhino 120/180 Gallon Gravity Feed Tank System combines high-volume capacity with the rugged reliability of Rhino Tuff’s modular stackable tank design. With one 120-gallon tank stacked over a 180-gallon base, this system provides 300 gallons of fluid storage and gravity-fed dispensing with a minimal footprint. Ideal for shops, service trucks, and industrial facilities, this setup helps keep your operation clean, organized, and efficient.

Each component is constructed from natural virgin high-density polyethylene for excellent chemical resistance and long-term durability. Molded-in brass components, integrated site gauges, and smart port configurations make this a best-in-class solution for diesel, lubricants, DEF, and other compatible fluids.

Key Features

• Total Capacity: 1 x 120 Gallon Tank and 1 x 180 Gallon Tank (300 Gallons Total).
• Modular Design: Interlocking tank ridges allow secure stacking without conversion kits.
• Included Stand: 24" leg tank stand elevates the system for gravity dispensing.
• Drip Tray Kit: Catches spills and drips for a cleaner workspace.
• Spring-Loaded Brass Valves: High-durability valves offer precise dispensing control.
• Complete Accessories: Includes fittings, caps, and installation hardware for quick setup.
• Top Port Access: 2" opening for pump or vent, 1" opening for breather or remote fill, and a 2" center fill.
• Pump Plate Compatibility: Six molded-in brass inserts allow for easy pump mounting.
• Drain Bushing: Molded-in 1" NPT brass bushing provides a reliable drain point.
• Built-In Site Gauge: Semi-transparent tank walls show fluid level—no external gauge needed.
• Chemical-Resistant Material: Built with natural virgin HDPE for maximum durability.
• Universal Footprint: Standard 3' x 3' footprint aligns with other Rhino Tuff Tanks.


Specifications

• Model: RTT-6280
• Manufacturer: Rhino Tuff Tanks
• Capacity: 1 x 120 Gallon Tank and 1 x 180 Gallon Tank (300 Gallons Total)
• Assembled Dimensions: 36" L x 42" W x 95" H
• Top Openings: 2" for pump or vent
• Other Openings: 1" for desiccant breather or remote fill, 2" center fill
• Pump Mounting: Six molded-in brass inserts
• Drain Port: Molded-in 1" NPT brass bushing
• Site Gauge: Built-in semi-transparent tank walls
• Material: Natural virgin high density polyethylene
• Footprint: Standard 3' x 3'


Documents

Gravity Feed System Assembly Instructions

Gravity Feed System Assembly Video

Shipping & Warranty

Ships via LTL freight and is carefully packaged for safe delivery. Liftgate service available upon request at checkout.

This product is backed by a 1-Year Limited Warranty, covering defects in materials and workmanship. Damage resulting from improper installation, misuse, or unauthorized modifications is not covered under warranty.
