120/120 Gallon Rhino Tuff Tanks Complete Gravity Feed System (MPN: RTT-6220)

Description

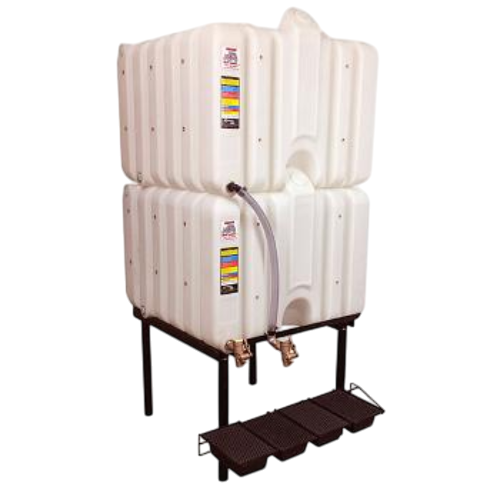

The Rhino 120/120 Gallon Gravity Feed Tank System delivers a reliable and efficient solution for fluid storage and dispensing. Featuring two stackable 120-gallon tanks mounted on a robust tank stand with 24" legs, this system is designed for mobile and stationary applications requiring gravity-fed fluid management.

Made from natural virgin high-density polyethylene, the tanks provide excellent chemical resistance and durability. Key features like molded-in brass inserts, site gauges, and multiple access openings enable straightforward operation and maintenance. The system also includes a drip tray kit and brass spring valves for clean and safe usage.

Key Features

• Capacity: 2 x 120 Gallon Tanks (240 Gallons total).
• Stackable Tanks: Interlocking top and bottom ridges for secure stacking without the need for conversion brackets.
• Tank Stand with 24" Legs: Offers stable support and proper height for gravity feed.
• Drip Tray Kit: Included to help manage spills and maintain cleanliness.
• Brass Spring Valves: Durable valves included for reliable flow control.
• Accessory Package: Complete mounting and installation hardware included.
• Multiple Openings: 2" top opening for pump or vent application, 1" opening for desiccant breather or remote fill, and convenient 2" center fill opening.
• Molded-in Brass Inserts: Six brass inserts enable secure side mount pump plate attachment.
• Mold-in Graphic and Identification Label: For easy product identification.
• Unique Drain: Industry’s only molded-in brass 1" NPT bushing at the drain opening.
• Site Gauge: Molded-in site gauge and semi-transparent tank material eliminate the need for external gauges.
• Natural Virgin HDPE Construction: Ensures long-lasting chemical resistance.
• Stackable in Any Combination: No conversion brackets necessary.
• Standard Footprint: Compact 3' x 3' footprint for flexible installation.


Specifications

• Capacity: 2 x 120 Gallon Tanks (240 Gallons total)
• Assembled Dimensions: 36" L x 42" W x 83" H
• Top Opening: 2" for pump or vent application
• Additional Openings: 1" for desiccant breather or remote fill, 2" center fill opening
• Stacking System: Interlocking ridges for secure stacking
• Brass Inserts: Six molded-in brass inserts for pump plate attachment
• Drain: Molded-in brass 1" NPT bushing
• Site Gauge: Molded-in, semi-transparent tank material
• Material: Natural virgin high density polyethylene
• Footprint: Standard 3' x 3' footprint


Documents

Gravity Feed System Assembly Instructions

Gravity Feed System Assembly Video

Shipping & Warranty

Ships FOB from the designated warehouse with freight class and liftgate options available upon request.

Backed by a 1-Year Limited Warranty against defects in material and workmanship under normal use. This warranty does not cover damage caused by accident, misuse, improper installation, or unauthorized repairs.
