100 Gallon Custom Roto-Mold Open Top Plastic Cone Bottom Tank (MPN 100 OTCB)

Description

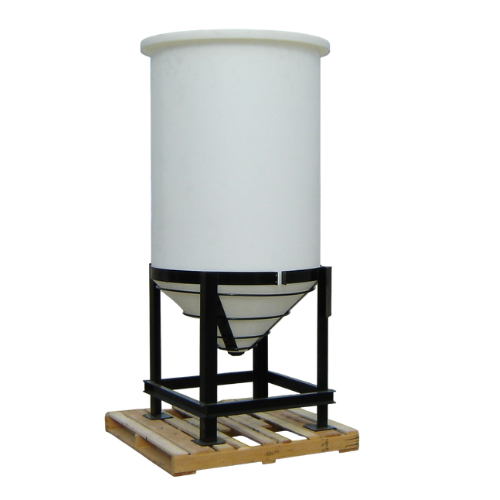

The 100 Gallon Open Top Cone Tank (Part No. 100OTCB) is a reliable and highly efficient solution for liquid storage, open-top processing, and full drainage applications. Measuring 30 inches in diameter and 40 inches in height, this tank is ideal for industrial, agricultural, and food-grade operations that require cleanout access and optimized flow control. The 30-degree cone bottom ensures up to 99% drainage, with an optional upgrade for complete 100% full drain functionality.

Manufactured by Custom Roto-Molding using UV-stabilized, FDA-compliant polyethylene, the tank is suitable for both indoor and outdoor stationary use. Its translucent open-top design offers full visibility and convenient access for mixing, filling, and cleaning operations.

Key Features

• Efficient Drainage: The 30-degree cone bottom offers 99% drainability; optional upgrade available for 100% full drain.
• Durable Construction: Made from polyethylene with FDA-approved, ANSI/NSF 61 compliant resin for potable and food-safe liquids.
• UV Stabilized: Built-in UV inhibitors extend the tank’s outdoor lifespan by protecting it from sunlight damage.
• Open Top Design: Ideal for mixing, cleaning, and applications requiring unobstructed access to contents.
• Translucent Body: Easily monitor liquid levels without gauges or disassembly.
• Heavy-Duty Capability: Rated for 1.7 specific gravity, allowing secure storage of heavier liquids like fertilizers or brine.
• Versatile Application: Perfect for chemical handling, water treatment, agricultural use, and food and beverage processing.

Specifications

• Capacity: 100 Gallons

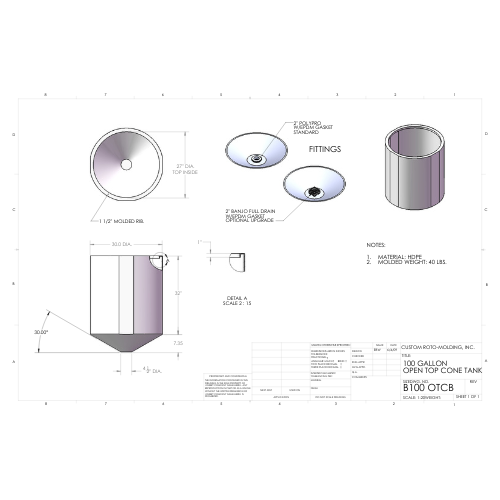

• Dimensions: 30" Diameter x 40" Height
• Weight: 40 lbs (Shipping Weight: 90 lbs)
• Lid Type: Open Top
• Outlet: 1-1/4" Polypropylene Female NPT Bulkhead Fitting
• Material: UV-Stabilized Polyethylene (FDA Approved, ANSI/NSF 61 Compliant)
• Maximum Specific Gravity: 1.7
• Maximum Temperature: 120°F (48°C)
• Color: Natural White (Translucent)
• Drainage: 30° Cone Bottom
• Usage: Above-Ground, Stationary
• Stand Requirement: Yes (sold separately)
• Pressurization: Not for use in pressurized systems
• Origin: USA

Shipping & Warranty

Orders are typically processed within 1–2 business days. This tank ships from Idaho (ZIP 83605) via LTL freight. A liftgate delivery option is available upon request.

This tank includes a 3-year manufacturer’s warranty, offering dependable performance and peace of mind.
