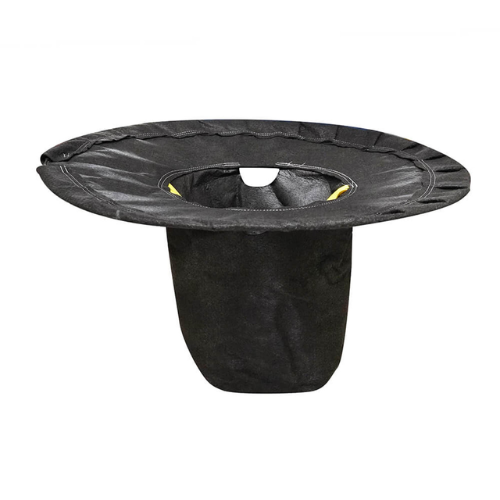

ENPAC Round, Cone Style Storm Sentinel® Catch Basin Insert, Adjustable, No Overflow, 22" to 24"(MPN: 4340-22-NO-CONE)

Description

The Storm Sentinel® Catch Basin Insert is purpose-built to stop sediment, debris, and pollutants from entering storm drains. This round, cone-style model features no overflow bypass, ensuring that all collected stormwater passes through the filtration fabric for maximum containment. Designed with an adjustable steel wire frame, it fits basins from 22" to 24" and allows for fast, one-person installation without tools.

The geotextile fabric traps contaminated sediment, while the cone depth provides increased capacity without protruding above the grate. Fully compliant with EPA, SPCC, and NPDES requirements, the insert is reusable until it can no longer maintain adequate water flow. For hydrocarbon capture, an optional oil-absorbing Spilltration® sorbent insert is available. Protected under U.S. Patent No. 10,384,155.

Key feature

• Adjustable steel wire frame for 22"–24" drains
• No overflow bypass for full filtration control

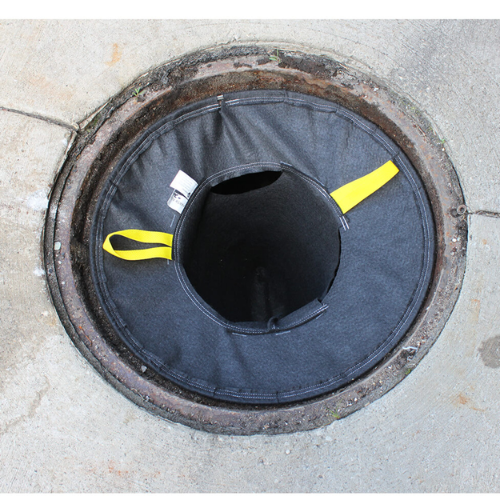

• Low-profile installation beneath the grate
• One-person installation; no special tools needed
• Geotextile fabric blocks sediment and debris
• Reusable until water flow becomes restricted

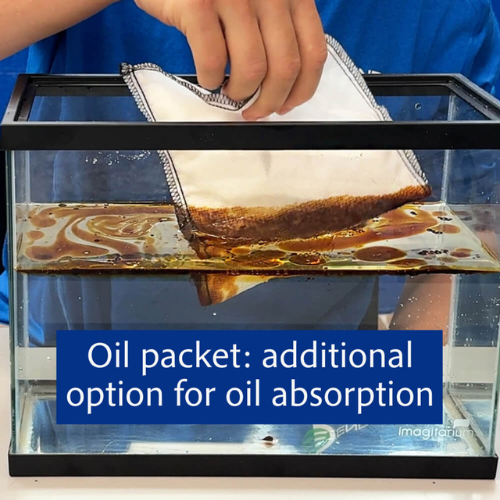

• Optional oil-absorbing Spilltration® insert for hydrocarbons
• Compliant with SWPPP and stormwater regulations
• U.S. Patent No. 10,384,155


Specifications

• Material: 8 oz. Non-Woven Geotextile
• Country of Origin: USA
• Diameter: 22 in. (51 cm) to 24 in. (60 cm)
• Cone Depth: 17 in. (43.18 cm)
• Weight: 1 lb. (0.5 kg)
• Flow Rate: 90 gal. (340.69 L) per min. per sqft.
• Load Capacity: 40 lbs. (18 kg)
• Regulatory Compliance: 40 CFR 122.26, EPA, SPCC, NPDES


Documents

View Catalog Page:
Catalog Page 88

View Product Instructions:
4340-CONE, 4340-22-CONE Storm Sentinel Instructions

View Product Instructions:
BMP Maintenance Log

View SDS:
Oil Only Absorbing Packet SDS

View Regulations:
Codes and Regulations

Shipping & Warranty

Ships FOB from Caldwell, Idaho (Zip Code: 83605). Freight charges calculated per order size and destination.

Includes a 1-Year Limited Warranty against defects in materials and workmanship under normal use.
