Rhino Tuff Electronic Non-Preset Dispensing Meter HD Series GRACO (MPN: RTT-4106)

Description

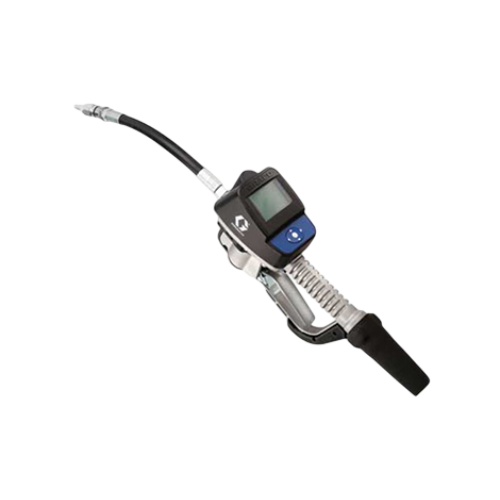

The GRACO SD Series Electronic Manual Dispensing Meter (MPN: RTT-4106) is designed for high-volume, demanding fluid dispensing in standard and heavy-duty applications. It is ideal for automotive dealerships, fleet operations, mining, off-road vehicles, public works garages, construction sites, and large in-plant facilities.

This manual meter provides precise measurement and control for oils, gear oils, anti-freeze, and other compatible fluids. Featuring a rugged design with durable materials, it ensures long-lasting service life in tough environments. With a flow range up to 5 gallons per minute and a maximum working pressure of 1500 psi, the SD Series is engineered for accuracy and reliability across a wide range of fluid transfer needs.

Powered by AA batteries and equipped with an easy-to-read display, this meter is built to handle high demands while maintaining user-friendly operation.

Key Features

• Heavy-Duty Fluid Metering: Built for high-volume use in automotive, mining, fleet, and construction industries.
• Wide Flow Range: 0.1 – 5 GPM (0.4 – 19 LPM) for versatile fluid dispensing.
• High Maximum Pressure: Rated for pressures up to 1500 psi (103.4 bar) to support demanding applications.
• Multiple Units of Measure: Displays quarts, pints, gallons, and liters (factory set to quarts).
• Durable Construction: Wetted parts include aluminum, stainless steel, PBT/PC, zinc, nitrile rubber, and carbon steel for longevity.
• Battery Operated: Uses 4 AA alkaline or lithium batteries with approximately one-year battery life.
• Accurate Measurement: ±0.5% accuracy at typical operating conditions.
• Large Totalizer: Records up to 999,999 gallons or liters.
• Rugged Inlet and Outlet: Swivel 1/2”-14 NPT female inlet and 3/4”-16 straight thread O-ring boss outlet.


Additional Information

• Weight: 5 lbs (2.3 kg)
• Dimensions: 13 × 3.75 × 5.75 inches
• Flow Range: 0.1 – 5 GPM (0.4 – 19 LPM)
• Maximum Working Pressure: 1500 psi (103.4 bar)
• Operating Temperature: 4 – 158°F (-20 – 70°C)
• Storage Temperature Range: -40 – 158°F (-40 – 70°C)
• Battery Type: 4 AA alkaline or lithium
• Battery Life: Approximately 1 year
• Meter Pressure Loss: 80 psi at 10 GPM (tested with 10W oil at 70°F)
• Accuracy: ±0.5% at 2.5 GPM (9.5 LPM), may require recalibration
• Maximum Totalizer: 999,999 gallons or liters
• Wetted Materials: Aluminum, stainless steel, PBT/PC, zinc, nitrile rubber, carbon steel
• Manufacturer Part Number: 255348
• Instruction Manual: 312865
• Typical Fluids: Motor oil, gear oil, anti-freeze, oil
• Typical Applications: Automotive dealerships, fleets, mining, public works, construction, off-road vehicles, in-plant service
• Swivel Inlet: 1/2”–14 NPT female
• Outlet: 3/4”–16 straight thread O-ring boss


Shipping & Warranty

Ships FOB from Idaho (Zip Code: 83605) via ground or LTL freight depending on order specifics.

Backed by a Five-Year Warranty on the overall unit and a Three-Year Warranty on electronics against defects under normal use.
