Rhino Tuff 3:1 Pump LD Series W/BUNG Adapter Graco Pneumatic Piston (MPN: RTT-4018)

Description

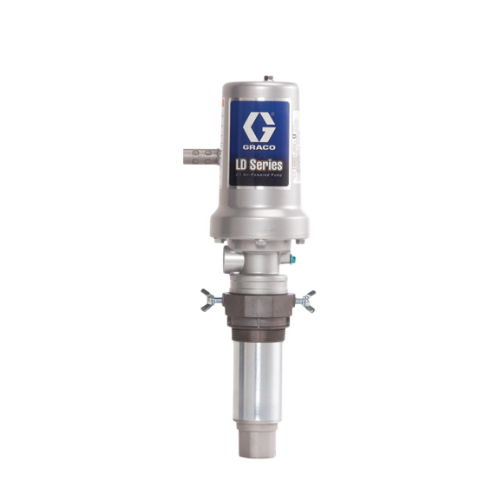

Built for performance and durability, the GRACO 3:1 LD Series Pump with Bung Adapter (MPN: 24G576) is ideal for dispensing non-corrosive, non-abrasive lubricants in both stationary and mobile lube system installations. Designed for professional use, this air-operated pump handles a variety of fluids, including motor oil, gear oil, ATF, and grease, with reliable precision and efficient flow control.

Featuring a 3:1 fluid pressure ratio and suction lift of up to 10 feet, this pump delivers smooth, consistent output with a maximum working pressure of 450 psi. It is constructed with robust wetted components—including zinc-plated carbon steel, aluminum, and nitrile—to withstand tough shop environments while maintaining long service life.

The included bung adapter allows for direct mounting to standard drums, while the pump’s compatibility with compressed air systems (25–150 psi range) makes it ideal for quick lubes, tire centers, automotive dealerships, and mobile lube trucks. Use with compressed air only. Not for windshield washer fluid.

Key Features

• Versatile Lubricant Pump: Compatible with oil, grease, ATF, gear oil, and hydraulic fluids.
• 3:1 Fluid Pressure Ratio: Delivers up to 450 psi output using standard shop air.
• Bung Adapter Included: Allows direct drum mounting for easy integration.
• High Free Flow Rate: Achieves up to 7.8 gallons per minute under ideal conditions.
• Suction Lift Capability: Draws fluids from depths up to 10 feet.
• Durable Wetted Parts: Made with zinc-plated carbon steel, aluminum, and nitrile for extended life.
• Low Sound Emission: Operates at 82 dB(A); optional muffler available (GRACO 112933) for quieter performance.
• Recommended for Professional Use Only: Designed for stationary or mobile installations—do not use with windshield washer fluid.


Additional Information

• Weight: 7 lbs
• Maximum Working Pressure: 450 psi (31 bar)
• Air Operation Range: 25–150 psi
• Recommended Air Pressure: <125 psi (for optimal life)
• Maximum Pump Speed: 120 cycles/min
• Recommended Speed: 75 cycles/min or lower (2.6 gal/min)
• Cycles per Gallon: 29 cycles/gal
• Sound Power Level: 82.0 dB(A) at 100 psi and 20 cycles/min
• Free Flow Rate: 7.8 gpm
• Air Inlet: 1/4"-18 NPT
• Fluid Inlet: 1"-11.5 NPT
• Fluid Outlet: 1/2"-14 NPT
• Wetted Materials: Zinc-plated carbon steel, aluminum, polyurethane, nitrile, nickel-plated aluminum
• Typical Applications: Automotive dealerships, mobile lube trucks, quick lubes, tire & transmission centers
• Fluid Types Supported: Motor oil, gear oil, ATF, grease, hydraulic fluid
• Manufacturer Part Number: 24G576
• Performance Curve: See GRACO Instruction Manual 3A1334


Shipping & Warranty

This item ships FOB from Idaho (Zip Code: 83605). Orders may ship via standard ground or LTL freight depending on the volume and delivery location. For assistance with bulk orders or installation components, please reach out to our team.

Covered by a 1-Year Manufacturer’s Warranty from GRACO, protecting against defects in materials and workmanship under normal usage.
