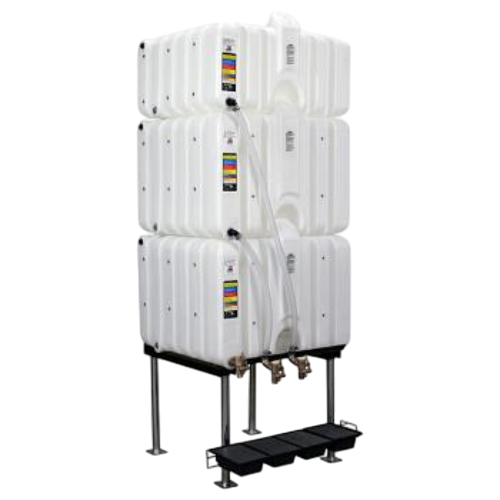

80/120/120 Gallon Rhino Tuff Tanks Gravity Feed Tank System ULC Listed (MPN: RTT-6322)

Description

The Rhino 80/120/120 Gallon Gravity Feed Tank System is a premium fluid storage and dispensing solution designed for maximum capacity and minimal footprint. Featuring one 80-gallon and two 120-gallon stackable tanks, this triple-stack system delivers 320 gallons of storage in a safe, organized layout. Ideal for automotive shops, service centers, and industrial operations, this setup allows gravity-fed dispensing without the need for electric pumps.

Built from natural virgin high-density polyethylene, Rhino Tuff Tanks are engineered to resist chemicals and corrosion. Interlocking ridges, molded-in brass inserts, and integrated site gauges make this system secure, functional, and easy to operate. No conversion kits or external gauges required—just stack, fill, and dispense.

Key Features

• Capacity: 1 x 80 Gallon Tank and 2 x 120 Gallon Tanks (320 Gallons Total).
• Stackable Design: Interlocking ridges on tank tops and bottoms for secure, tool-free stacking.
• Tank Stand with 24" Legs: Elevates the system for gravity-fed dispensing functionality.
• Drip Tray Kit: Prevents spills and keeps your workspace clean and efficient.
• Brass Spring Valves: Durable, high-quality valves for reliable fluid control.
• Complete Accessory Package: Includes all essential mounting and connection hardware.
• Top Port Access: 2" pump or vent port, 1" desiccant breather/remote fill port, and a 2" center fill opening.
• Pump Plate Compatibility: Six molded-in brass inserts support side-mount pump plate installation.
• Drain Port: Industry-first molded-in 1" NPT brass bushing at the drain for long-term durability.
• Built-in Site Gauge: Molded-in semi-transparent tank walls allow clear visibility of fluid levels.
• Chemical-Resistant Construction: Made from high-density polyethylene for long-lasting use.
• Universal Footprint: 3' x 3' base for consistent, modular setup across all tank sizes.


Specifications

• Model: RTT-6322
• Manufacturer: Rhino Tuff Tanks
• Capacity: 1 x 80 Gallon Tank and 2 x 120 Gallon Tanks (320 Gallons Total)
• Assembled Dimensions: 36" L x 42" W x 101" H
• Top Openings: 2" for pump or vent application
• Other Openings: 1" for desiccant breather or remote fill, 2" center fill opening
• Pump Mounting: Six molded-in brass inserts
• Drain Port: Molded-in 1" NPT brass bushing
• Site Gauge: Molded-in, semi-transparent walls
• Material: Natural virgin high density polyethylene
• Footprint: Standard 3' x 3'


Documents

Gravity Feed System Assembly Instructions

Gravity Feed System Assembly Video

Shipping & Warranty

Ships via LTL freight from our warehouse. Liftgate service available upon request. Each tank system is carefully palletized and secured for safe, damage-free delivery.

Backed by a 1-Year Limited Warranty covering manufacturing defects under normal use. Warranty excludes damage caused by improper installation, misuse, modification, or unauthorized repairs.

Price Match Guarantee

If you find the Rhino 80/120/120 Gallon Gravity Feed Tank System (Model RTT-6322) offered at a lower price by another authorized dealer within 6 months of purchase, we’ll match it and refund the difference.

Contact: info@tanksupplydepot.com
