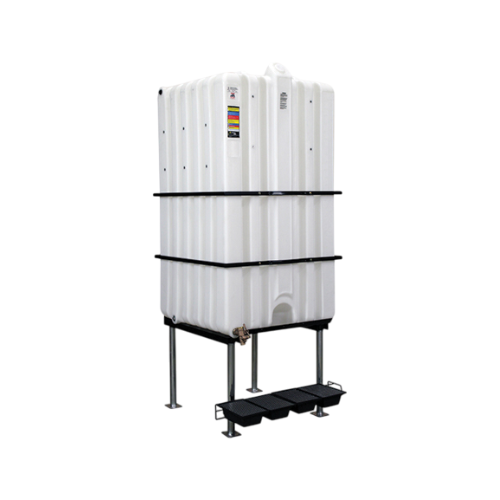

310 Gallon Rhino Tuff Tanks Double Ring Gravity Feed System No Valve (MPN: RTT-6500-NV)

Description

The 310 Gallon Stackable Fluid Storage System delivers a heavy-duty, space-efficient solution for storing and dispensing fluids in industrial, agricultural, and commercial environments. This system features one 310-gallon stackable tank, a tank stand with 24″ legs, and a drip tray kit to ensure safe and convenient fluid handling.

Constructed from natural virgin high-density polyethylene, this tank offers superior chemical resistance and durability. The design includes interlocking top and bottom ridges for secure stacking, an industry-exclusive molded-in 304 stainless steel drain fitting, and a built-in site gauge for easy fluid level monitoring.

This tank is compatible with other sizes in the stackable series, maximizing vertical storage capacity while maintaining fluid visibility and dispensing ease.

Key Features

• 310-Gallon Capacity: One large stackable tank mounted on a tank stand with 24″ legs.
• Secure Stackable Design: Interlocking ridges on the top and bottom provide stable, bracket-free stacking.
• Durable HDPE Construction: Made from natural virgin high-density polyethylene for outstanding chemical resistance and long service life.
• 304 Stainless Steel Drain Fitting: Features the industry’s only molded-in 1″ NPT stainless steel bushing at the drain opening—no aftermarket fittings necessary.
• Integrated Site Gauge: Semi-transparent tank walls with a molded-in fluid level gauge eliminate the need for external site gauges.
• Multiple Port Openings:
  • 2″ top opening for pump or vent applications
  • 1″ opening for desiccant breather or remote fill
  • 2″ center fill opening for easy refilling
• Mounting Ready: Six molded-in metal inserts allow attachment of a side-mount pump plate (sold separately).
• Standard Footprint: Shares a 3′ x 3′ base with other tanks in the series for stacking flexibility.
• No Conversion Brackets Needed: Compatible for stacking in any combination.


Package Includes

• One (1) 310-Gallon Stackable Tank
• Tank Stand with 24″ Legs
• Drip Tray Kit


Additional Information

• Shipping Weight: 295 lbs
• Shipping Dimensions: 44″ L x 36″ W x 77″ H
• Assembled Dimensions: 36″ L x 42″ W x 95″ H
• Footprint: Standard 3′ x 3′
• Material: Natural Virgin HDPE
• Drain Fitting: Molded-in 304 Stainless Steel 1″ NPT Bushing
• Number of Tanks: 1
• Application: Oil, DEF, Lubricants, Non-Potable Fluids


Documents

RTT Spec Sheet - 500396

Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions

Shipping & Warranty

Ships FOB from Idaho (Zip Code: 83605), Freight Class 250. Liftgate service available upon request for residential or limited-access delivery locations.

Covered by a 1-Year Limited Warranty against defects in materials and workmanship under normal use conditions.
