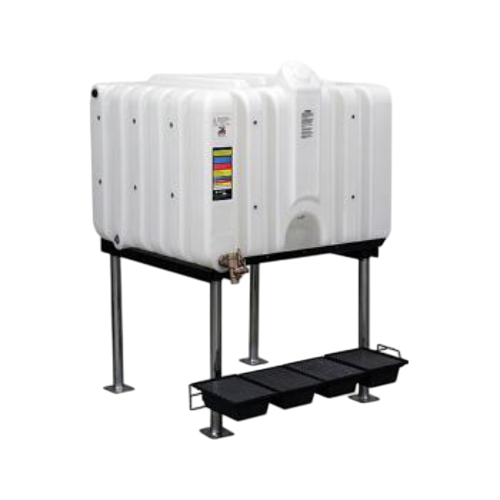

120 Gallon Rhino Tuff Complete Gravity Feed Tank System (MPN: RTT-6200)

Description

The Rhino 120 Gallon Gravity Feed Tank System is a reliable and durable solution designed for fluid storage and gravity-fed dispensing. Featuring a single 120-gallon stackable tank mounted on a sturdy tank stand with 24" legs, this system is perfect for mobile or stationary applications requiring efficient fluid management.

Constructed from natural virgin high-density polyethylene, the tank offers excellent chemical resistance and long-lasting durability. It includes convenient features such as molded-in brass inserts, site gauges, and multiple access openings to facilitate easy operation and maintenance. The included drip tray kit and brass spring valves add safety and cleanliness to the system.

Key Features

• Capacity: 1 x 120 Gallon Tank (120 Gallons total).
• Stackable Tank: Interlocking top and bottom ridges for secure stacking without conversion brackets.
• Tank Stand with 24" Legs: Provides sturdy support and optimal height for gravity feed.
• Drip Tray Kit: Included to manage spills and maintain clean operation.
• Brass Spring Valves: Durable valves for reliable fluid control.
• Accessory Package: Complete set of mounting and installation accessories included.
• Multiple Openings: 2" top opening for pump or vent application, 1" opening for desiccant breather or remote fill, and convenient 2" center fill opening.
• Molded-in Brass Inserts: Six brass inserts allow for side mount pump plate attachment.
• Mold-in Graphic and Identification Label: For easy identification and branding.
• Unique Drain: Industry’s only molded-in brass 1" NPT bushing at the drain opening.
• Site Gauge: Molded-in site gauge and semi-transparent tank material eliminate the need for external gauges.
• Natural Virgin HDPE Construction: Ensures chemical resistance and long service life.
• Stackable in Any Combination: No conversion brackets required.
• Standard Footprint: Compact 3' x 3' footprint for flexible placement.


Specifications

• Capacity: 1 x 120 Gallon Tank (120 Gallons total)
• Assembled Dimensions: 36" L x 42" W x 56" H
• Top Opening: 2" for pump or vent application
• Additional Openings: 1" for desiccant breather or remote fill, 2" center fill opening
• Stacking System: Interlocking ridges for secure stacking
• Brass Inserts: Six molded-in brass inserts for pump plate attachment
• Drain: Molded-in brass 1" NPT bushing
• Site Gauge: Molded-in, semi-transparent tank material
• Material: Natural virgin high density polyethylene
• Footprint: Standard 3' x 3' footprint


Documents

Gravity Feed System Assembly Instructions

Gravity Feed System Assembly Video

Shipping & Warranty

Ships FOB from the designated warehouse with freight class and liftgate options available upon request.

Backed by a 1-Year Limited Warranty against defects in material and workmanship under normal use. This warranty does not cover damage caused by accident, misuse, improper installation, or unauthorized repairs.
